The Clearview Vision Inset Stove

  • Gallery Image 1
  • Gallery Image 3
  • Gallery Image 2

Maximum gross heat output: 5kw
Available in a choice of 7 different colours
Solid brass door handles available (also available in satin chrome)
Bottom air inlet makes full use of any external inlets whilst maximising pre heating and reducing base temperature
Steel trim surround available, 2″ (50mm) or 100mm (4")
Front Fettle and levelling feet. (to increase height 40mm)
8,000 B.T.U stainless steel boiler
Flue Diameter: 6in. (150mm)
Takes up to 12 inch logs
Download Specs

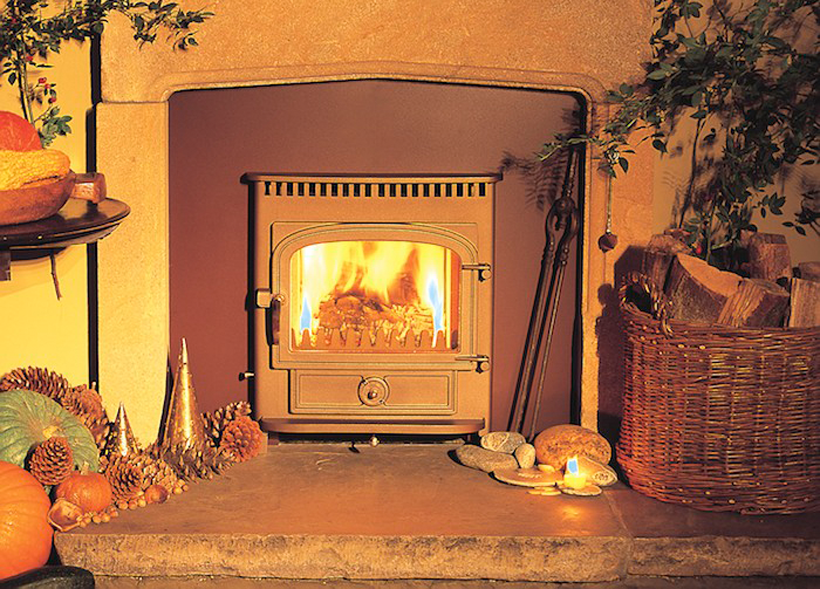

The Clearview Vision Inset Woodburning Stove incorporates all the tested Clearview features; wonderful fire view, clean burning, however this design allows for the stove to be installed into a standard fire place opening where the hearth depth is limited and the least structural disruption is required.

If the fireplace is to be constructed, use our fire convection box to line the opening. This will aid installation and ensure the correct air flow around the stove.

All designs by Clearview Stoves®. Copyright Clearview Stoves®. No part or parts to be reproduced without our written permission. Clearview Stoves’ products are protected by numerous national and international patents and design rights.
Some Clearview Stoves have boiler options, the smaller Pioneer and Vision stoves can provide domestic hot water.
The Larger 650 and 750 stoves can provide full central heating as well.
Boilers can be fitted to our stoves at any time; if your needs change you can change the boiler. If a boiler needs to be replaced in years to come, there is not a problem, most other stoves would need to be thrown away.
Outputs are dependent on fuel, installation and operation; all information is given as a guide only: specifications and products may change without notice.
Please note; Adding a boiler to a stove will cool the firebox and will impair clean combustion.
Why not contact us today for more information on the Pioneer 400 Solid Fuel Stoves or any other product in our Solid Fuel Stoves Collection.
